Introduction

The Motor Shield V1.0 is a platform for robotics and mechanical applications based on L298P. It can be used to drive double DC motor or a 4-wire stepper. When controlling double DC motor, there are Only 4 control pins were been used, which makes more easily to control, and saves the control pins for controller. The Drive current can be up to 2A per motor output for the add of the heat sink. Measure the driver current by the additional resistance, makes the system more smarter.

Technical Data

Operating voltage: 4.5V to .55V,

Typical operate voltage: 5V

Drive Voltage: 6v to 15V

Typical drive voltage: 12V

Output current: 2A

Features

The logic control voltage: 4.5~5.5V

Motor Supply Voltage: 6~ 15V

Reduced control pins needed

Measurement for driver current

Drive part of the operating current Io: 2A

Maximum power dissipation: 25W (T = 75 degree Celsius)

Operating temperature: -25 degree Celsius ~ +130 degree Celsius

Drive Type: Dual high-power H-bridge driver

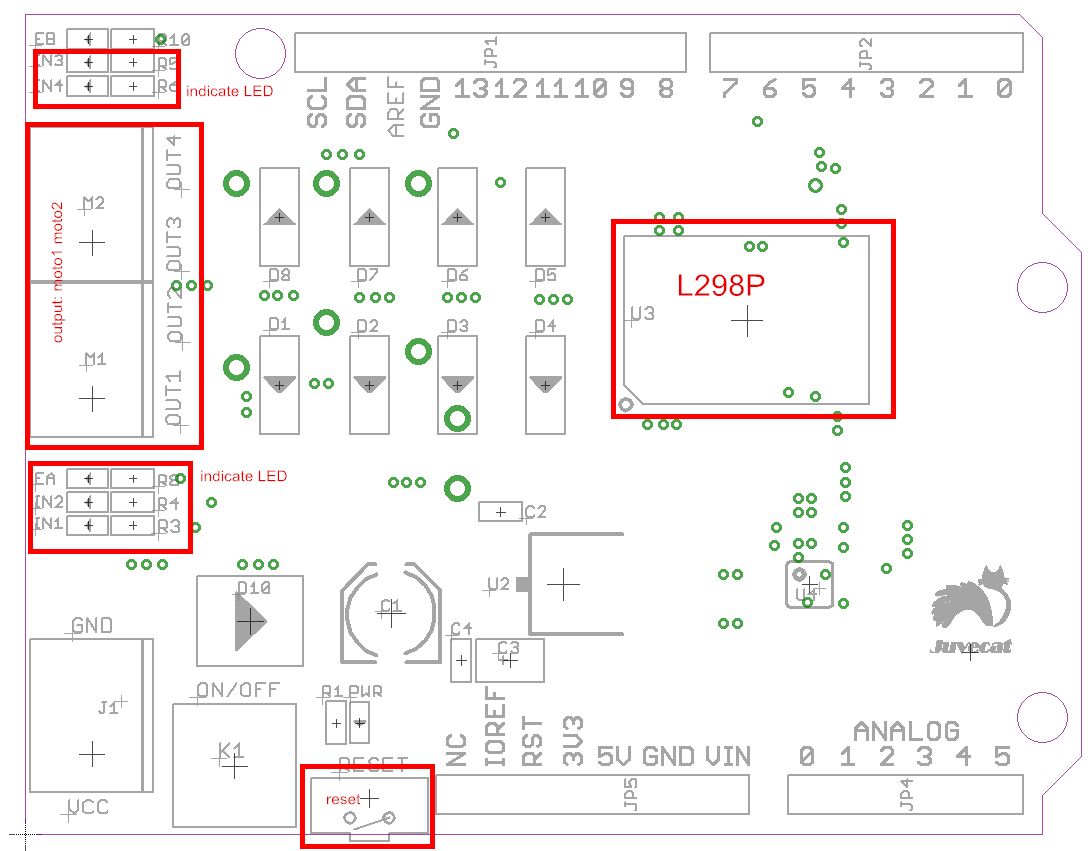

Interface

Usage

Let’s test it

Plug Motor shield to Arduino/Catduino

Burn our program to Arduino/Catduino

Connect motor to motor shield, motor will work

[code]

int MotorLeft1=8; // IN1

int MotorLeft2=11; // IN2

int MotorRight1=12;  // IN3

int MotorRight2=13;  // IN4

int MotorRPWM=9;  //PWM  EA

int MotorLPWM=10;  //PWM EB

void setup()

{

  Serial.begin(9600);

  pinMode(MotorRight1, OUTPUT);

  pinMode(MotorRight2, OUTPUT);

  pinMode(MotorLeft1,  OUTPUT);

  pinMode(MotorLeft2,  OUTPUT);

  pinMode(MotorLPWM,  OUTPUT);

  pinMode(MotorRPWM,  OUTPUT);

}

void loop()

 {

     LeftMotorRun();

     delay(5000);

     Stop();

     delay(2);

     RightMotorRun();

     delay(5000);

     Stop();

     delay(2);

     advance();

     delay(5000);

     Stop();

     delay(2);

     back();

     delay(5000);

     Stop();

     delay(2);

 }

void back()     // go

    {

      digitalWrite(MotorRight1, HIGH);

       digitalWrite(MotorRight2, LOW);

       digitalWrite(MotorLeft1, HIGH);

       digitalWrite(MotorLeft2,LOW);

       analogWrite(MotorLPWM,200);

        analogWrite(MotorRPWM,200);

    }

void advance()     // go forward

    {

      digitalWrite(MotorRight1, LOW);

       digitalWrite(MotorRight2, HIGH);

       digitalWrite(MotorLeft1, LOW);

       digitalWrite(MotorLeft2,HIGH);

       analogWrite(MotorLPWM,200);

        analogWrite(MotorRPWM,200);

    }

    void LeftMotorRun()         //test the left motor

    {

      digitalWrite(MotorRight1, LOW);

       digitalWrite(MotorRight2, HIGH);

       digitalWrite(MotorLeft1, LOW);

       digitalWrite(MotorLeft2,HIGH);

       analogWrite(MotorLPWM,0);

        analogWrite(MotorRPWM,255);

    }

    void RightMotorRun()        //test the right motor

    {

       digitalWrite(MotorRight1, LOW);

       digitalWrite(MotorRight2, HIGH);

       digitalWrite(MotorLeft1, LOW);

       digitalWrite(MotorLeft2,HIGH);

       analogWrite(MotorLPWM,255);

        analogWrite(MotorRPWM,0);

    }

       void Stop()          //stop

 {

        digitalWrite(MotorRight1, LOW);

       digitalWrite(MotorRight2, LOW);

       digitalWrite(MotorLeft1,LOW);

       digitalWrite(MotorLeft2,LOW);

       analogWrite(MotorLPWM,0);

        analogWrite(MotorRPWM,0);

    }

[/code]

Resource

Program

Schematic

Datasheet
